Product Details:
|
Type: | Li-Ion | Size: | 18*65mm |
---|---|---|---|
Nominal Voltage: | 3.7V | Cycle Life: | 500 Times |
Nominal Capacity: | 2600mAh | Warranty: | 1 Year |
Application: | EV,Solar Storage System,electric Ebike,Electric Vehicles | Shape: | Cylindrical |
Advantage: | Longer Cycle Life,can Be Customized | ||
High Light: | RoHS Rechargeable Lithium Battery,18650 Battery Cell 2600mah,500 Times 18650 Battery Cell |

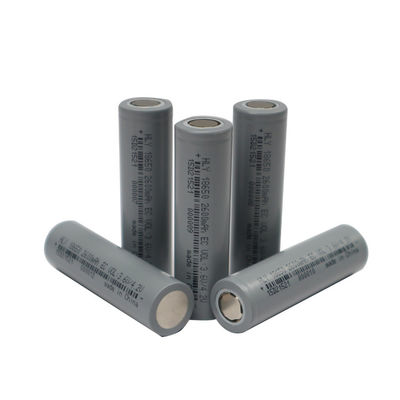

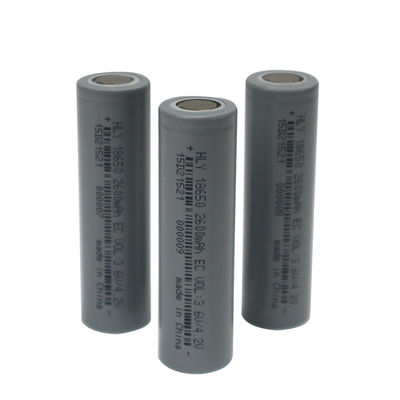

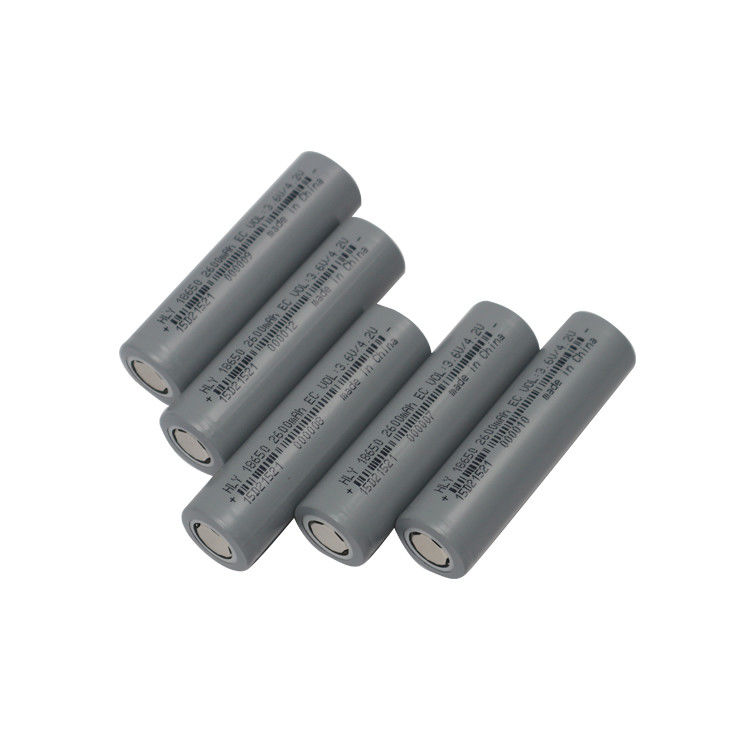

3.7 V Rechargeable Lithium Battery 2600mah 18650 Batteries Cell For E-Bike
ITEM | SPECIFICATION |
Nominal capacity | 2600 mAh@0.5C |
Minimum capactiy |
2550 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (1300mA) |
Standard discharge current | 1C (2600mA) |
Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
Max continuous discharge current | 1C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 2C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
Weight | ≤ 51g |
FAQ:
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, neutral order mass production time needs 3-7 working days. If OEM orders, would be about 30 days.
Q3. Do you have MOQ for Your Batteries?
A: OEM orders MOQ is 20000pcs. We can also accept small quantity for neutral orders.
Q4. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on the product?
A: Yes. We welcome OEM and ODM orders.
