Product Details:
|
Features: | High-rate Charge-discharge Capability | Battery Type: | 18650 Rechargeable Li-ion |
---|---|---|---|
Battery Size: | 18.4*65.1mm | Weight: | 48g |
Nominal Voltage: | 3.6V | OEM/ODM: | Accepatable |
Cycle Life: | 500 Times | Warranty: | 1 Year |
High Light: | 18650 Lithium Ion Battery 2000mAh,3.6V 18650 Lithium Ion Battery,2000mAh high rate 18650 battery |

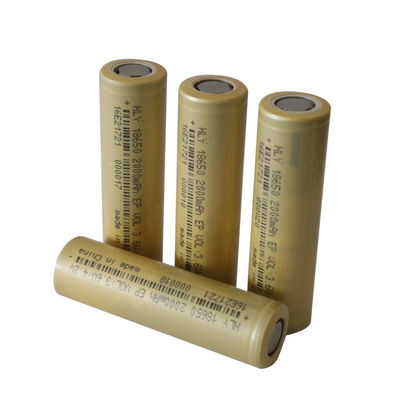

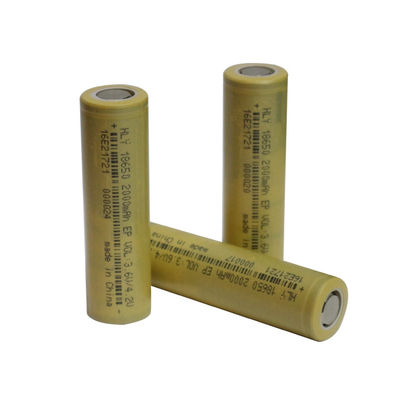

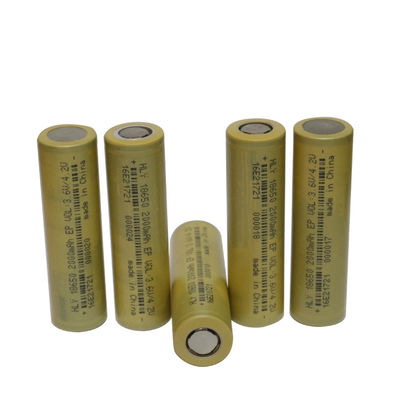

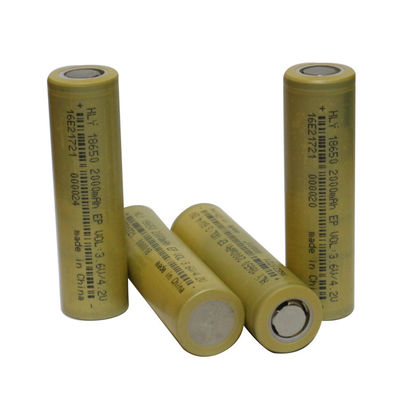

High Rate Capability 3.6V 2000mAh 18650 Lithium Ion Battery Cells For Electric Vehicles
PRODUCT DESCRIPTION
Battery Characteristic:
1. Light, small, low current, large capacity, high rate capability, high energy density and long cycle life.
2. High safety, over charge and over discharge protection, we have got many prodcuts certificates, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc, to meet the international standards.
3. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature.
4. A variety of battery battery types for choice, like 18650 2000mAh, 2200mAh, 2500mAh, 2600mAh, suitable for many different product fields, meet your different demands.
5. Independent R&D, can be customized as per customers' product requirements, like printing logo, customized packaging and graphic.
1. Storage: solar and wind complementary stored energy, solar streetlights, energy storage systems, household and open air energy storage.
2. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power.
3. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars, electric wheelchair, electric motorcycle, electric bicycle, balance bikes, electric scooter, electric skateboard, grass trimmer or lawn mowers.
4. Home electronics: electric tool or power tool, mobile audio, electric shaver, POS machine, bright flashlight, mobile power supplies, electronic nebulizer, unmanned aerial vehicle, etc.
And other system standby power etc.
Specification:
ITEM | SPECIFICATION |
Nominal capacity | 2000 mAh@0.5C |
Minimum capactiy |
1950 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (1000mA) |
Standard discharge current | 1C (2000mA) |
Max charge current |
3C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
Max continuous discharge current | 15C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 20C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
Weight | ≤ 48g |
Packaging and Shipping:
FAQ:
Q1: Are you a factory or company?
A: Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q3: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q4: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
Tel: 86-18870604692
