Product Details:
|

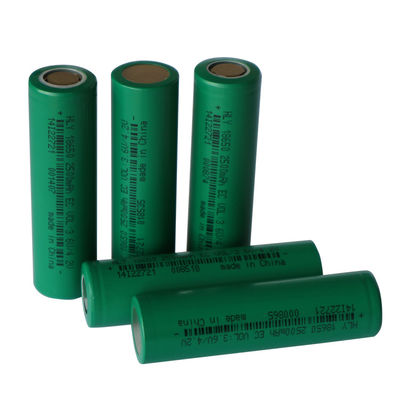

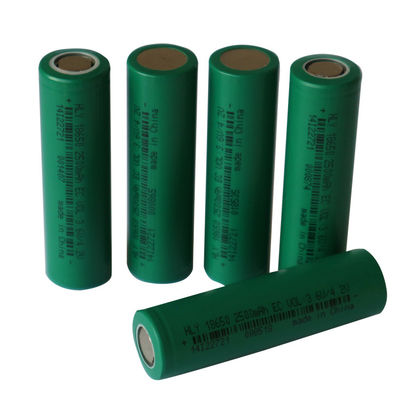

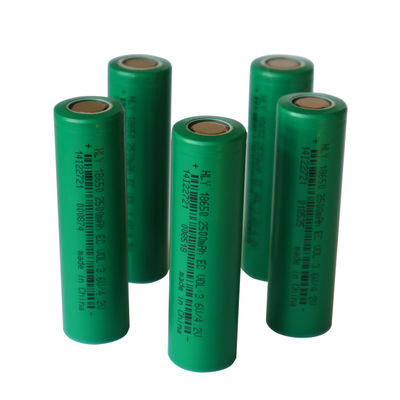

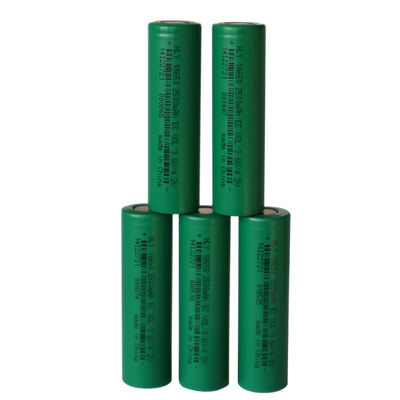

Battery Type: | 18650 Rechargeable Li-ion | Battery Size: | 18.4*65.1mm |
---|---|---|---|
Weight: | 48g | Nominal Voltage: | 3.6V |
OEM/ODM: | Accepatable | Cycle Life: | 500 Times |
High Light: | HLY 2500mah 18650 Battery,Electric Vehicles 2500mah 18650 Battery,HLY 3.6 v 2500mah battery |
1. Long cycle life and high energy density | |||||||
2. Safety performance design | |||||||
3. Consistency assurance | |||||||
4. Energy system full equalization | |||||||
5. High safety, meeting international safety standards | |||||||
6. Independent development and design |
1.Telecommunication: cellular phone, web phone, interphone, earphone.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
Specification:
ITEM | SPECIFICATION |
Nominal capacity | 2500 mAh@0.5C |
Minimum capactiy |
2450 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (1250mA) |
Standard discharge current | 1C (2500mA) |
Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
Weight | ≤ 48g |
Packaging and Shipping:
Exhibition:
Cooperative Partner:
Warnings:
1. Do not submerge the battery in the water. | |||||||
2. Do not mix fresh batteries with used batteries. | |||||||
3. Do not mix batteries with metal stuff together. | |||||||
4. Do not insert batteries with the (+) and (-) reversed. | |||||||
5. Do not disassemble, dispose in fire, heat or short circuit. | |||||||
6. Do not put the battery in a charger or equipment with wrong terminals connected. |
FAQ:
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, neutral order mass production time needs 3-7 working days. If OEM orders, would be about 30 days.
Q3: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q4: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
