Product Details:
|

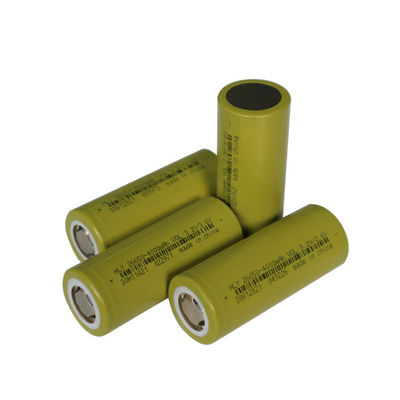

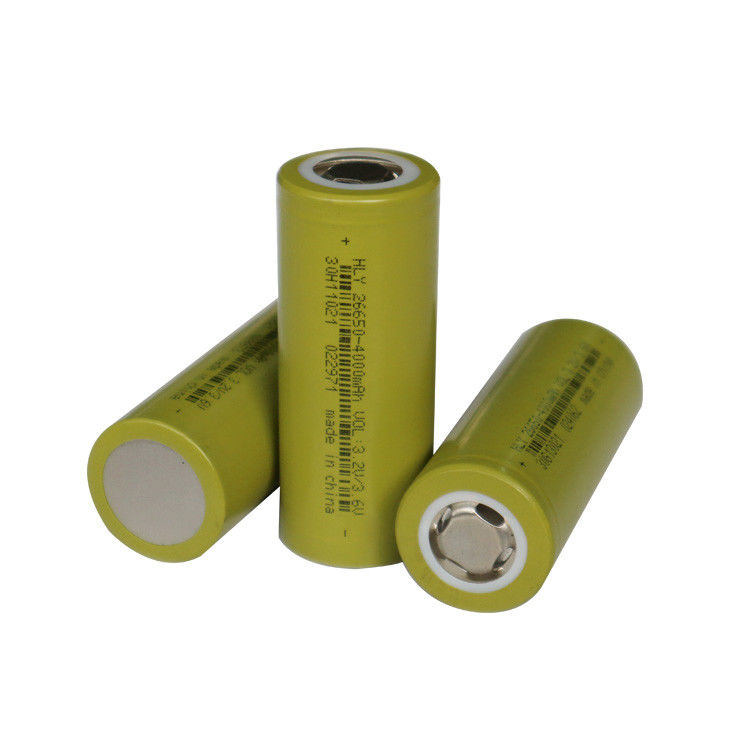

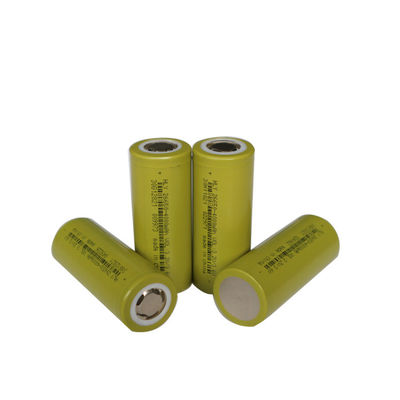

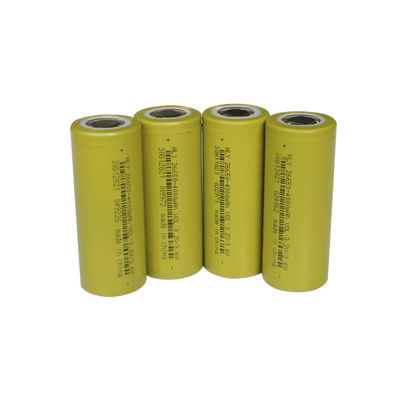

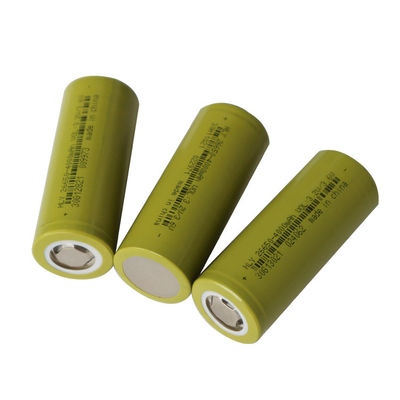

Battery Type: | 26650 Rechargeable Li-ion | Battery Size: | 26.5*65.5mm |
---|---|---|---|
Weight: | 88±2g | Nominal Voltage: | 3.2V |
Cycle Life: | 1500 Times | OEM/ODM: | Accepatable |
High Light: | 26650 3.2 Volt Rechargeable Battery,4000mAh 3.2 Volt Rechargeable Battery,4000mAh solar light batteries 3.2 volt |
The cycle life of 26650 ternary power battery reached 1500 times or more than 80%, which realized the application High cost performance.
Applications:
Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply |
Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp |
Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) |
Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) |
Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy |
Photovoltaic off-grid and grid-connected energy storage power station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc |
Paramenters:
ITEM | SPECIFICATION |
Normal capacity | 4000 mAh@0.5C |
Minimum capactiy |
3960 mAh@0.5C (Discharge the cell from 3.6V to 2.0V by 0.5C current) |
Normal voltage | 3.2V |
Charging voltage | 3.65± 0.05 V |
Discharg ending voltage | 2.00 ± 0.05 V |
Standard charge current | 0.5C (2000mA) |
Standard discharge current | 1C (4000mA) |
Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge:10~60℃ Discharge: 0~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃
Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Advantage:
Wide operating temperature range, stable performance under high and low temperature.
A variety of cell types for choice, suitable for many different product fields.
Independent development and design, can be customized as per customers' producy requirements.
Pakaging and Shipping:
Certificate:
Company profile:
JiangXi Hualiyuan lithium Energy Co.,Ltd,was established in 2013.The company has an industrial park of 23,000 square meters and more than 100 patented technologies, including 8 invention patents, more than 100 technical research and development personnel and more than 200 sets of high-precision instruments. After 10 years more of rapid development,HYL has become a global competitive high-quality lithium battery platform company, possessing core technologies and comprehensive solutions for consumer batteries and power batteries. Products are widely used in the field of loT and Energy Internet.
FAQ:
Q1: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q2: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
Q4: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
Q5: What about the lead time?
A: Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days.
