Product Details:
|
| Type: | Lithium Battery/li-ion Battery | Size: | 26*65mm Lithium Battery |
|---|---|---|---|
| Battery Type: | Lithium Ion Battery 26650 Cells | Capacity: | 5000mAh |
| Shape: | Cylindrical | Advantage: | Longer Cycle Life,can Be Customized |
| High Light: | 5000MAh Solar Battery Cells,26650 Solar Battery Cells,BIS Lithium Ion Battery Cell |
||

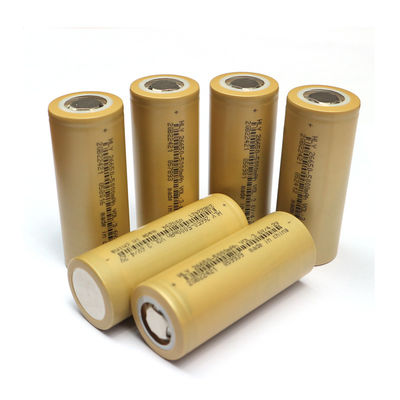

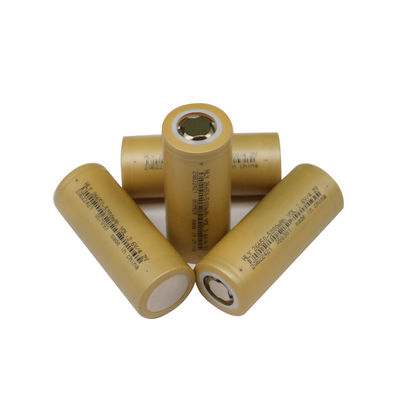

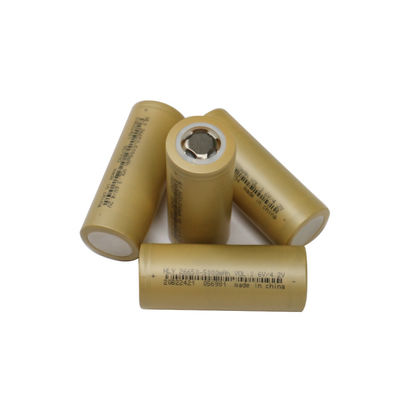

Deep Cycle Green Energy Solar Battery Cells 26650 5000 MAh Li Ion For E-Bike
PRODUCT DESCRIPTION
Battery Features:
I. Light, small, low current, large capacity, high rate capability, high energy density and long cycle life.
II. High safety, over charge and over discharge protection, meeting international safety standards, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc.
III. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃ and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature.
IV. A variety of battery cell types for choice, like 26650 Li-ion battery 4000mAh, 5000mAh, suitable for many different product fields, meet your different demands.
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| Battery-operated motor cycle; Electric motorcycle; E-scooter |
Grid peak regulation power supply | Communication building 336V HVDC data center backup power | Electric model, airplane model | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Renewable energy (lithium iron battery + photovoltaic +...) Base station power supply | Electric robot; Electromotive robot | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric special vehicle: Electric golf car, electric sightseeing car, electric engineering car, electric sweeper, electric forklift, police patrol car, electric balance car | Photovoltaic off-grid and grid-connected energy storage power station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification
| ITEM | SPECIFICATION |
| Nominal capacity | 5000 mAh@0.5C |
| Minimum capactiy |
4950 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (2500mA) |
| Standard discharge current | 1C (5000mA) |
| Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge:0~60℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |

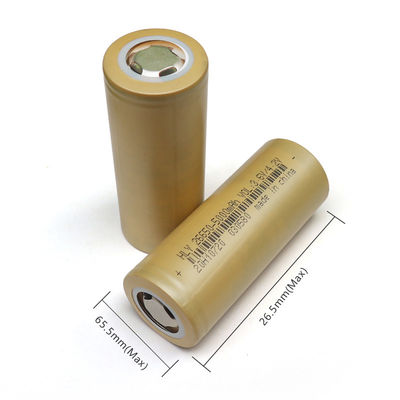

| Cell dimension |
Height: 65.5mm Diameter: 26.5mm |
| Weight | 96 ± 2g |
Advantage:
Long Cycle Life
- Large capacity;
- Low resistance;
- Smooth discharge；
- After 600 times standard charge & discharge, capacity>=80%.
Multiple Protection
- Over chare and ovege discharge protection
- Explosion-proof design
- Recycle and Rechargeable
- Multiple protections ensure safe use and extend span life
FAQ
Q1: Are you a factory or company?
A: We are a factory and trading company with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q3: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Do you have MOQ for your batteries?
A: MOQ of OEM orders is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs.
Q5: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
