Product Details:
|

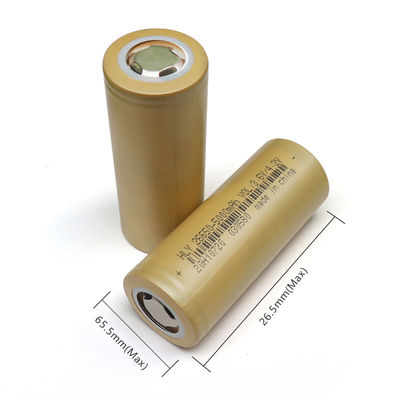

| Type: | Li-Ion | Size: | 26*65mm Lithium Battery |
|---|---|---|---|
| Nominal Voltage: | 3.6v | Cycle Life: | 1500 Times |
| Warranty: | 12month | Application: | EV,electric Ebike,Electric Vehicles |
| Weight: | 96g | Advantage: | Longer Cycle Life,can Be Customized |
| Highlight: | 26650 NCM Li Ion Battery,NCM Li Ion Battery,Ebike Li Ion Battery |
||

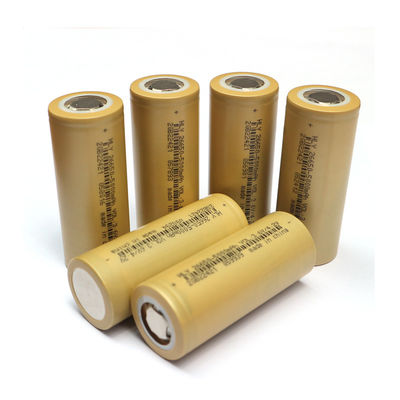

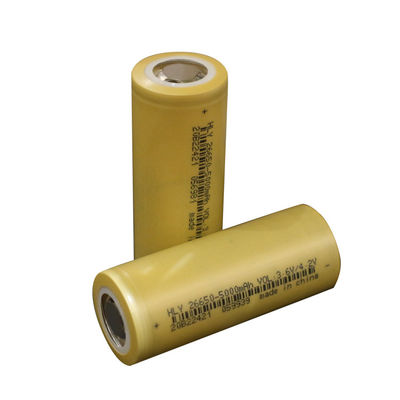

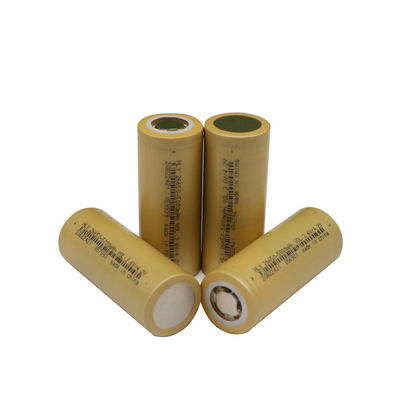

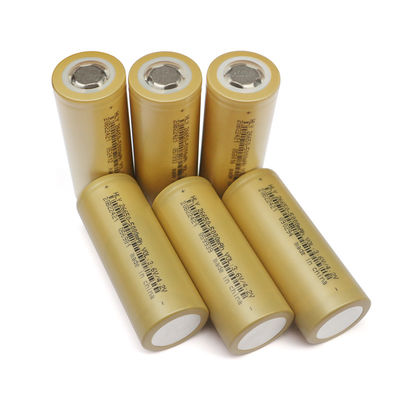

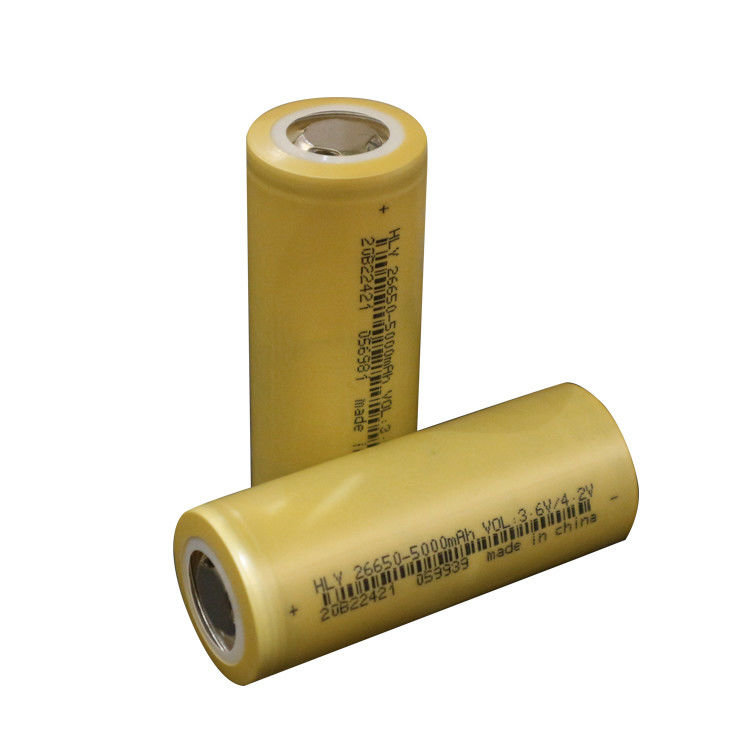

Best Seller NCM 3.6v 26650 5000mah Li Ion Battery For Solar Energy System
| Battery Features | |||||||
| 1.Long cycle life and high energy density | |||||||
| 2.Safety performance design | |||||||
| 3.Consistency assurance | |||||||
| 4.Energy system full equalization | |||||||
| 5.High safety, meeting international safety standards | |||||||
| 6.Independent development and design | |||||||
| 7.Multiple protections ensure safe use and extend span life | |||||||
| 8.A variety of cell types for choice, suitable for many different product fields. | |||||||
| 9.Widely operating temperature range, stable under high and low temperature. |
| Application field of lithium battery | |||||
| No. | Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| 1 | Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| 2 | Battery-operated motor cycle; Electric motorcycle; E-scooter |
Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| 3 | EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| ITEM | SPECIFICATION |
| Normal capacity | 5000 mAh@0.5C |
| Minimum capactiy |
4950 mAh@0.5C (Discharge the cell from 3.6V to 2.0V by 0.5C current) |
| Normal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (2500mA) |
| Standard discharge current | 1C (5000mA) |
| Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge:10~60℃ Discharge: 0~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃
Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
FAQ:
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, neutral order mass production time needs 3-7 working days. If OEM orders, would be about 30 days.
Q3: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q4: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
