Product Details:
|
Type: | Lithium Battery/li-ion Battery | Size: | 18*65mm |
---|---|---|---|
Nominal Voltage: | 3.6v | Cycle Life: | 500times |
Certification: | Ce,bis | Advantage: | Longer Cycle Life,can Be Customized |
High Light: | 2600mah Lithium Ion Cylindrical Cell,500times Lithium Ion Cylindrical Cell,3.6v 18650 2600mah Battery |

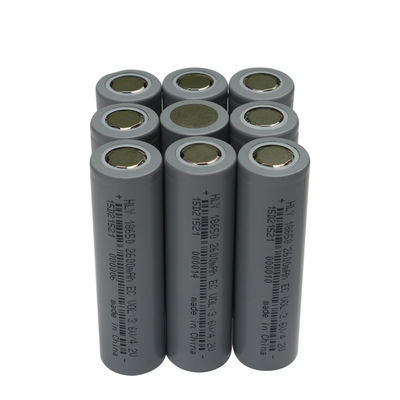

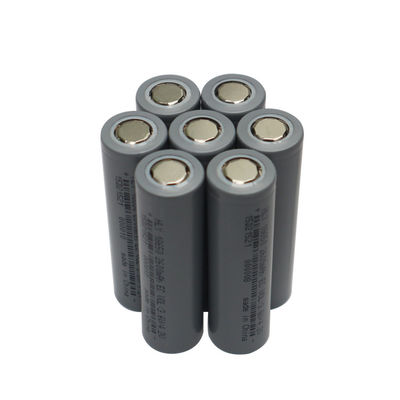

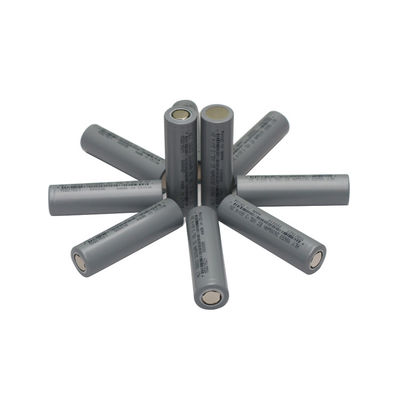

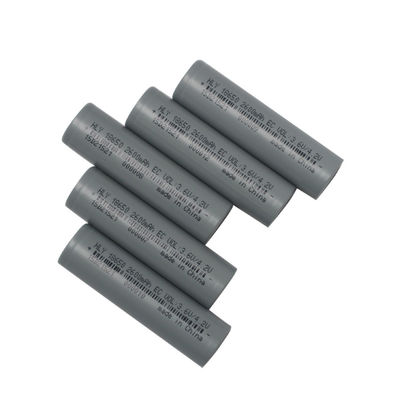

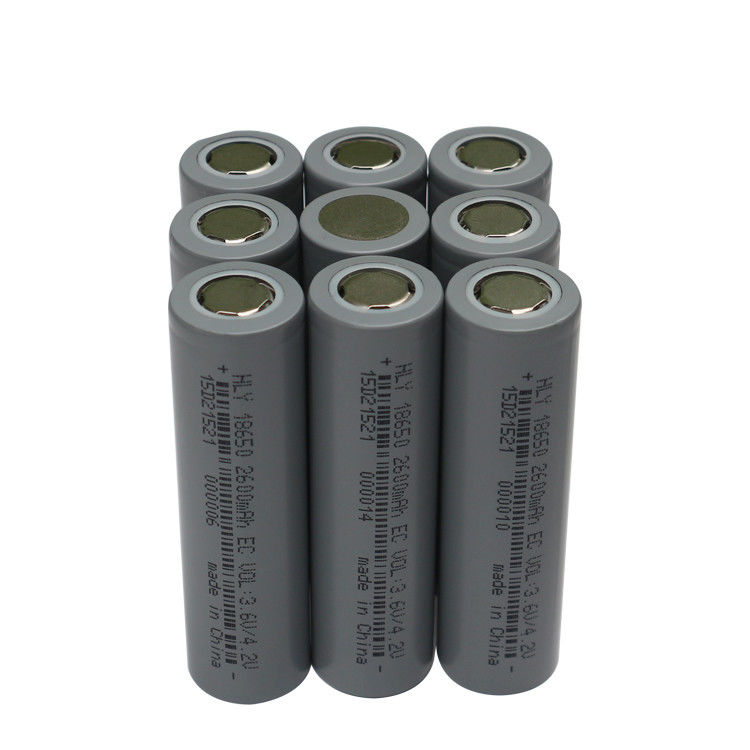

Lithium Ion Cylindrical Cell 3.6v 18650 2600mah Battery For Electric Scooters
PRODUCT DESCRIPTION
Brand characteristics:
1. Long-Life Technology
Based on the balance point design of energy density and cycle performance, innovation was made in material formula and process to improve the cycle performance of the product. The cycle life of 26650 ternary power battery reached 1500 times or more than 80%, which realized the application High cost performance.
2. Safety performance design
Increase the cost, optimize the design of battery separator and electrolyte, continuously improve the level of safety error proofing, and effectively reduce the probability of battery safety problems.
3. Consistency assurance
The comprehensive application of high-density battery technology, high-voltage battery technology, integrated charging technology, energy system full equalization technology, new energy and other life-cycle collaborative technologies has a high technical content.
1. Storage: solar and wind complementary stored energy, solar streetlights, energy storage systems, household energy storage, outdoor energy storage.
2. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power.
3. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars, electric wheelchair, electric motorcycle, electric bicycle, balance bikes, electric scooter, electric skateboard, grass trimmer or lawn mowers.
4. Home electronics: electric tool or power tool, mobile audio, electric shaver, POS machine, bright flashlight, mobile power supplies, electronic nebulizer, unmanned aerial vehicle, etc.
And other system standby power etc.
Specification:
ITEM | SPECIFICATION |
Nominal capacity | 2600 mAh@0.5C |
Minimum capactiy |
2550 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (1300mA) |
Standard discharge current | 1C (2600mA) |
Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
Max continuous discharge current | 1C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 2C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
Weight | ≤ 51g |
FAQ:
Q1: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q2: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
Q4: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
Q5: What about the lead time?
A: Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days.
Q6: How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional.
Q7: What's the payment term?
A: T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping.
