Product Details:
|
| Warranty: | 1 Year | Application: | EV,electric Ebike,Electric Vehicles |
|---|---|---|---|
| Weight: | 48g | Oem: | Accept OEM And ODM |
| Battery Type: | Lithium Ion Battery 12v 200ah Price | Shape: | Cylindrical |
| High Light: | NCM 3.6v 18650 Battery 2500mAh,OEM 18650 Battery 2500mAh,ODM Lithium Ion Battery Cell |
||

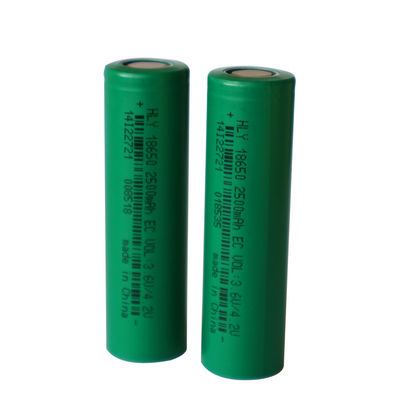

Best Seller 18650 Battery 2500mAh NCM 3.6v For Electric Bicycles/Scooters
PRODUCT DESCRIPTION
Brand characteristics:
1. Long-Life Technology
Based on the balance point design of energy density and cycle performance, innovation was made in material formula and process to improve the cycle performance of the product. The cycle life of 26650 ternary power battery reached 1500 times or more than 80%, which realized the application High cost performance.
2. Safety performance design
Increase the cost, optimize the design of battery separator and electrolyte, continuously improve the level of safety error proofing, and effectively reduce the probability of battery safety problems.
3. Consistency assurance
The comprehensive application of high-density battery technology, high-voltage battery technology, integrated charging technology, energy system full equalization technology, new energy and other life-cycle collaborative technologies has a high technical content.
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2500 mAh@0.5C |
| Minimum capactiy |
2450 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1250mA) |
| Standard discharge current | 1C (2500mA) |
| Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
1. Storage: solar and wind complementary stored energy, solar streetlights, energy storage systems, household energy storage, outdoor energy storage.
2. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power.
3. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars, electric wheelchair, electric motorcycle, electric bicycle, balance bikes, electric scooter, electric skateboard, grass trimmer or lawn mowers.
4. Home electronics: electric tool or power tool, mobile audio, electric shaver, POS machine, bright flashlight, mobile power supplies, electronic nebulizer, unmanned aerial vehicle, etc.
And other system standby power etc.
Packaging and Shipping:
Company profile:
JiangXi Hualiyuan lithium Energy Co.,Ltd,was established in 2013.The company has an industrial park of 23,000 square meters and more than 100 patented technologies, including 8 invention patents, more than 100 technical research and development personnel and more than 200 sets of high-precision instruments. After 10 years more of rapid development,HYL has become a global competitive high-quality lithium battery platform company, possessing core technologies and comprehensive solutions for consumer batteries and power batteries. Products are widely used in the field of loT and Energy Internet.
Exhibition:
Cooperative Partner:
Exhibition:
| Frequently asked questions | ||
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | Where can I get the price? | We usually quote within 24 hours after we get your inquiry. |
| 4 | Can I print my own logo on the product? | Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample. |
| 5 | What about the lead time? | Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days. |
| 6 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping. |
| 7 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
