Product Details:
|
Size: | 26*65mm Lithium Battery | Cycle Life: | 800 Times |
---|---|---|---|
Warranty: | 1 Year | Battery Type: | Lithium Ion Battery 26650 Cells |
Usage: | Power For Flashlight | Advantage: | Longer Cycle Life,can Be Customized |
High Light: | 26650 5000mah Lithium Ion Battery,800times 26650 Lithium Ion Battery,Power Tools 26650 Battery 5000mah |

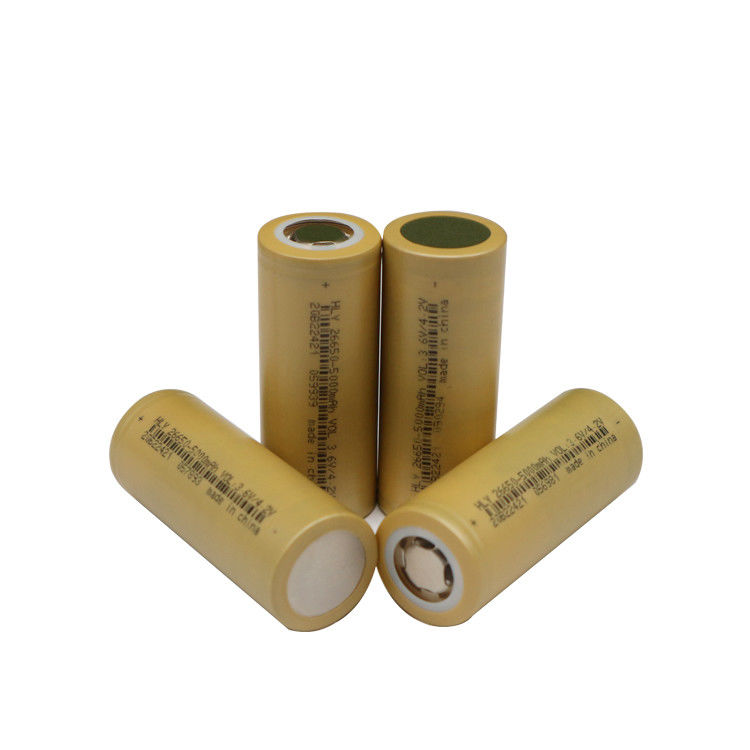

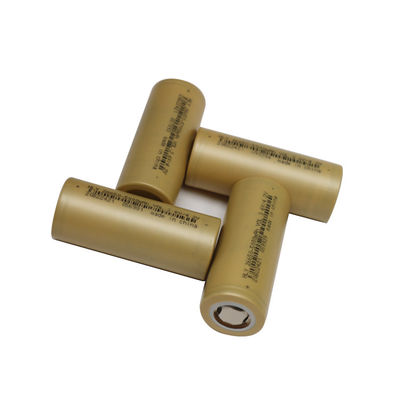

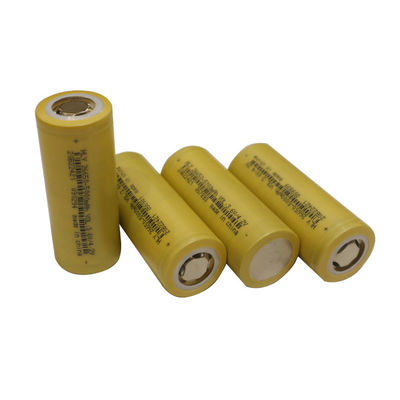

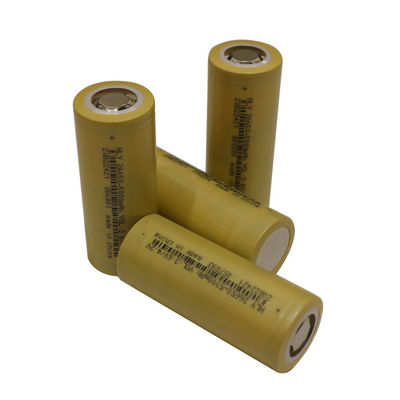

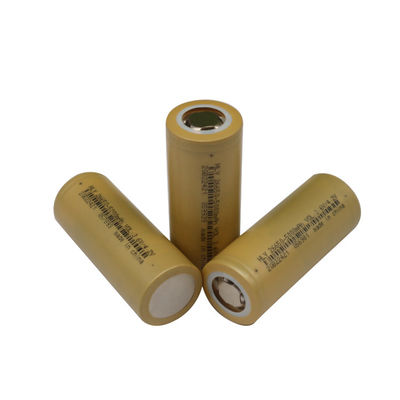

Long Cycle Rechargeable 26650 5000mah Lithium Ion Battery For Power Tools
specification
ITEM | SPECIFICATION |
Nominal capacity | 5000 mAh@0.5C |
Minimum capactiy |
4950 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (2500mA) |
Standard discharge current | 1C (5000mA) |
Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge:0~60℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.5mm Diameter: 26.5mm |
Weight | 96 ± 2g |
Applications:
Application field of lithium battery | ||||
Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
Battery-operated motor cycle; Electric motorcycle; E-scooter |
Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
Electric bus/Medium bus (Hybrid and pure) |
Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
