Product Details:
|
Type: | Lithium Battery/li-ion Battery | Size: | 18*65mm |
---|---|---|---|
Nominal Voltage: | 3.7V | Cycle Life: | 500 Times |
Nominal Capacity: | 2200mAh | Warranty: | 12 MONTHS |
Advantage: | Longer Cycle Life,can Be Customized | Shape: | Cylindrical |
High Light: | 500times Li Ion Battery Cell,3.6v 2500mah Li Ion Battery Cell,CE 18650 Battery 2500mah |

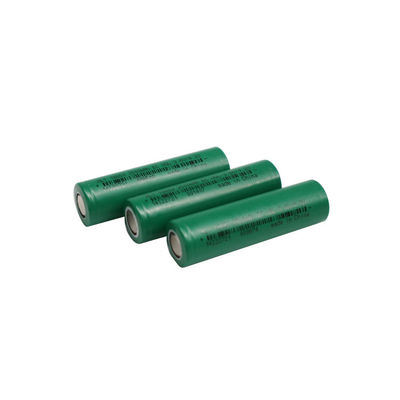

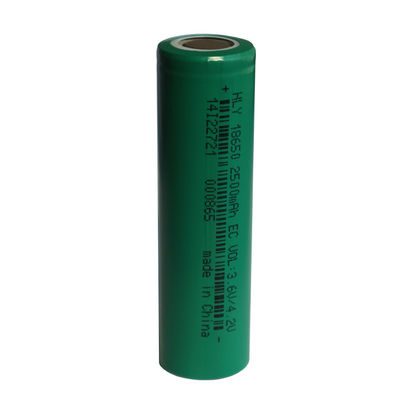

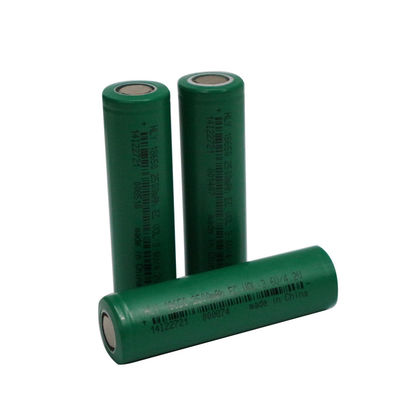

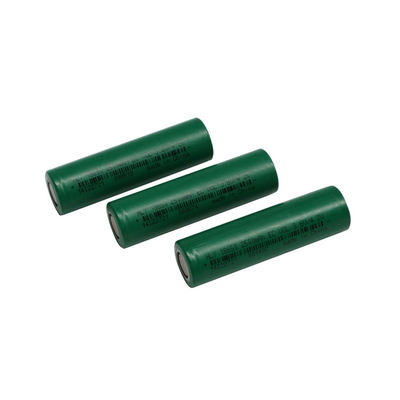

Factory 3.6v 2500mah Rechargeable Li Ion Battery 18650 for electric vehicles
Specification:
ITEM | SPECIFICATION |
Nominal capacity | 2500 mAh@0.5C |
Minimum capactiy |
2450 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (1250mA) |
Standard discharge current | 1C (2500mA) |
Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
Weight | ≤ 48g |
1. Storage: solar and wind complementary stored energy, solar streetlights, energy storage systems, household energy storage, outdoor energy storage.
2. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power.
3. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars, electric wheelchair, electric motorcycle, electric bicycle, balance bikes, electric scooter, electric skateboard, grass trimmer or lawn mowers.
4. Home electronics: electric tool or power tool, mobile audio, electric shaver, POS machine, bright flashlight, mobile power supplies, electronic nebulizer, unmanned aerial vehicle, etc.
And other system standby power etc.
Exhibition:
Frequently asked questions | ||
No. | Questions | Answers |
1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
3 | Where can I get the price? | We usually quote within 24 hours after we get your inquiry. |
4 | Can I print my own logo on the product? | Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample. |
5 | What about the lead time? | Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days. |
6 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping. |
7 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
Tel: 86-18870604692
