Product Details:
|
Nominal Capacity: | 2200mAh | Application: | EV,Flashlight,Solar Storage System,electric Ebike,Electric Vehicles |
---|---|---|---|
Weight: | 48g | Shape: | Cylindrical |
Usage: | Power For Flashlight | Advantage: | Longer Cycle Life,can Be Customized |
High Light: | BIS Rechargeable Lithium Battery,3.6v 2200mah Lithium Ion Battery Cell,Ebike 18650 Battery 2200mah |

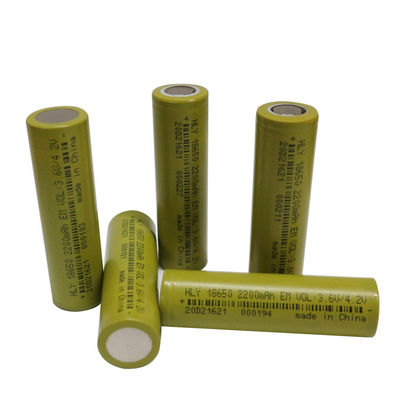

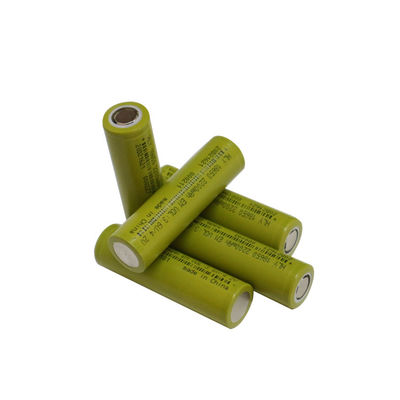

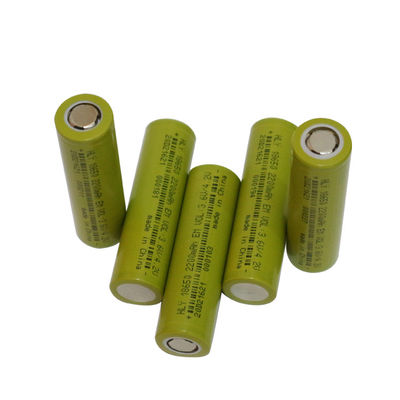

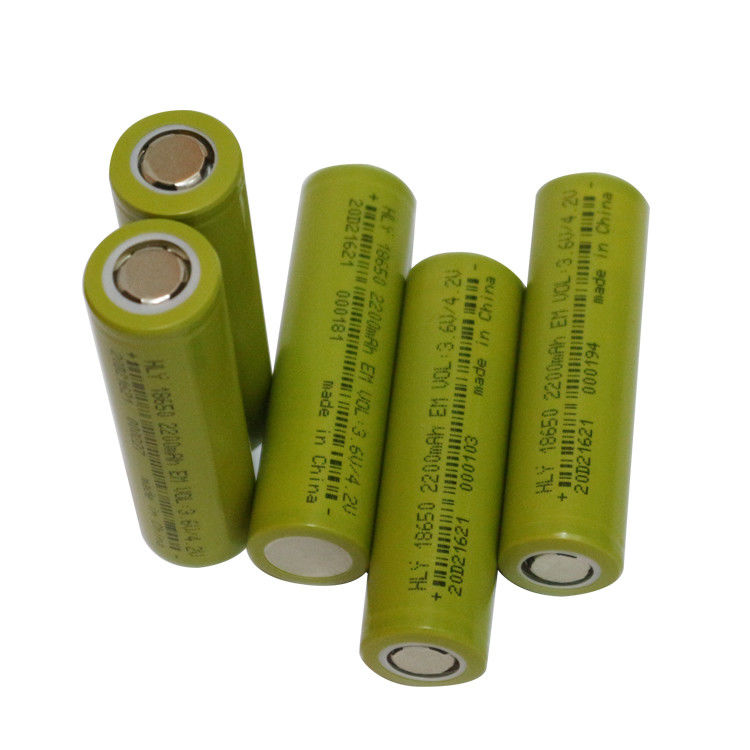

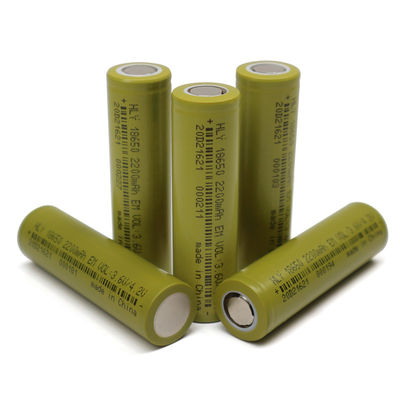

Customized Rechargeable Litium Battery 3.6v 2200mah 18650 Li Ion Battery Cell
Application field of lithium battery | |||||
No. | Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
1 | Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
2 | Battery-operated motor cycle; Electric motorcycle; E-scooter |
Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
3 | EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
4 | Electric bus/Medium bus (Hybrid and pure) |
Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification:
ITEM | SPECIFICATION |
Nominal capacity | 2200 mAh@0.5C |
Minimum capactiy |
2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (1100mA) |
Standard discharge current | 1C (2200mA) |
Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
Weight | ≤ 48g |
