Product Details:
|
Features: | High-rate Charge-discharge Capability | Battery Size: | 26.5*65.5mm |
---|---|---|---|
Weight: | 96g | Chargeable: | Yes |
Cycle Life: | 800times | Customization: | Logo/Packaging/Graphic |
High Light: | 26.5mm 5000mah 26650 Battery,EBike 5000mah 26650 Battery,65.5mm 26650 Battery 5000mah |

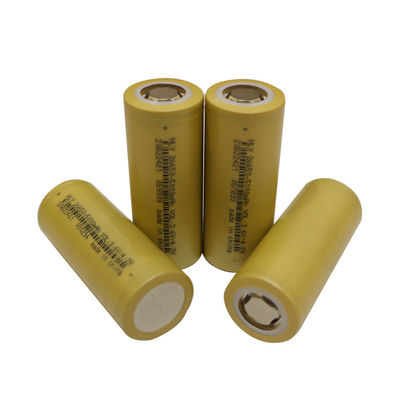

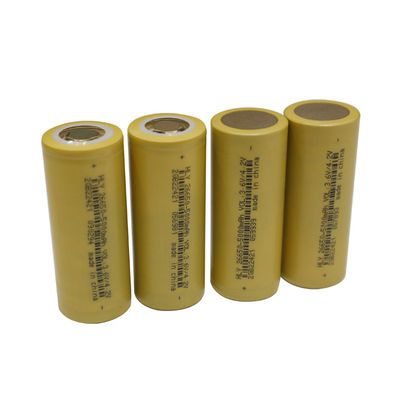

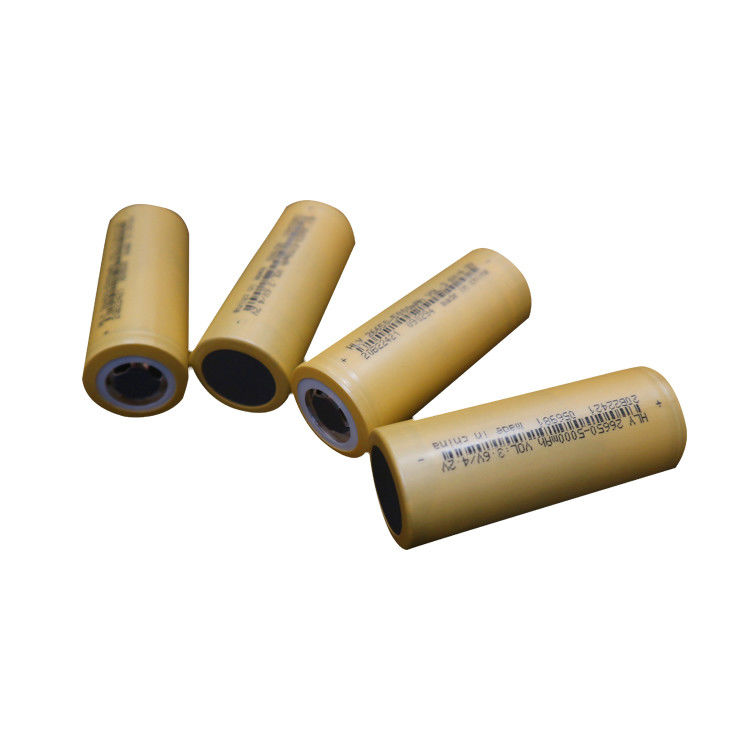

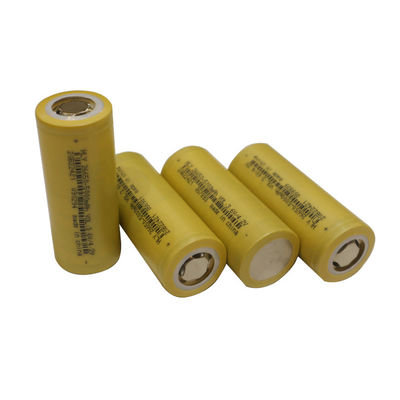

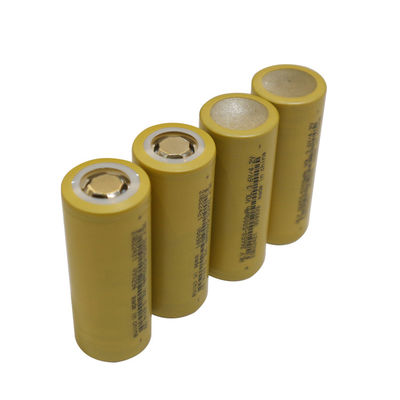

High Rate Capability 5000mah 26650 Battery Lithium Ion Battery For Electric Bicycles
Battery Features:
1. Light, small, low current, large capacity, high energy density and long cycle life.
2. High safety, over charge and over discharge protection, meeting international safety standards.
3. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature.
4. A variety of battery cell types for choice, like 26650 Li-ion battery 4000mAh, 5000mAh, suitable for many different product fields.
5. Independent research, design and development, can be customized as per customers' product requirements, like printing logo, customized packaging and graphic.
Applications:
Application field of lithium battery | ||||
Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
Battery-operated motor cycle; Electric motorcycle; E-scooter |
Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
Specification:
ITEM | SPECIFICATION |
Nominal capacity | 5000 mAh@0.5C |
Minimum capactiy |
4950 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (2500mA) |
Standard discharge current | 1C (5000mA) |
Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge:0~60℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.5mm Diameter: 26.5mm |
Weight | 96 ± 2g |
Packaging and Shipping:
Why Choose Us?
Certificate:
Company profile:
JiangXi Hualiyuan lithium Energy Co.,Ltd,was established in 2013.The company has an industrial park of 23,000 square meters and more than 100 patented technologies, including 8 invention patents, more than 100 technical research and development personnel and more than 200 sets of high-precision instruments. After 10 years more of rapid development,HYL has become a global competitive high-quality lithium battery platform company, possessing core technologies and comprehensive solutions for consumer batteries and power batteries. Products are widely used in the field of loT and Energy Internet.
FAQ:
Q1: Are you a factory or company?
A: Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q3: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q4: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
