Product Details:
|
| Battery Size: | 26.5*65.5mm | OEM/ODM: | Accepatable |
|---|---|---|---|
| Cycle Life: | 2000 Times | Nominal Voltage: | 3.2v |
| Weight: | 88±2g | Battery Shape: | Cylindrical |
| High Light: | Electric Bicycle Motor 26650 Lifepo4 Battery,Cylindrical 26650 Lifepo4 Battery,65.5mm Lifepo4 Battery Cell |
||

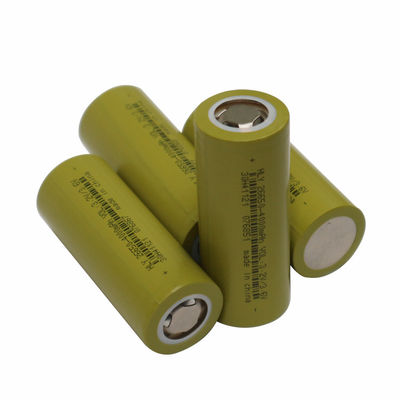

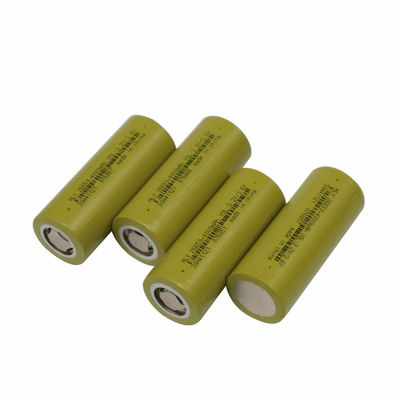

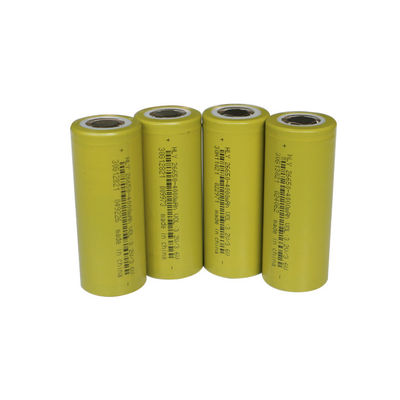

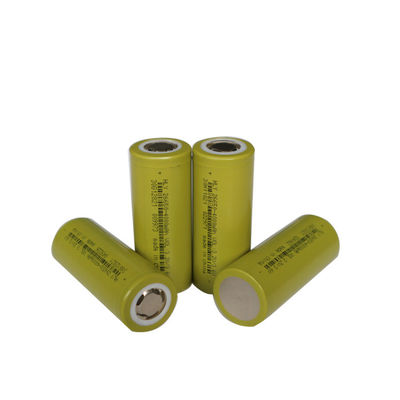

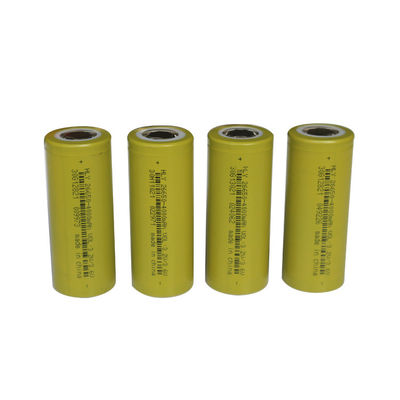

2000 Cycles Life Best 3.2 Volt 4000mah 26650 Lifepo4 Battery For Electric Bicycle Motor
The energy density of lithium-ion batteries is very high. Its capacity is 15 ~ 2 times that of Ni MH batteries with the same weight, and has a very low self discharge rate.
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 4000 mAh@0.5C |
| Minimum capactiy |
3960 mAh@0.5C (Discharge the cell from 3.6V to 2.0V by 0.5C current) |
| Nominal voltage | 3.2V |
| Charging voltage | 3.65 ± 0.05 V |
| Discharg ending voltage | 2.00 ± 0.05 V |
| Standard charge current | 0.5C (2000mA) |
| Standard discharge current | 1C (4000mA) |
| Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge:10~60℃ Discharge: 0~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension |
Height: 65.5 mm Diameter: 26.5 mm |
| Weight | 88 ± 2g |
Pakaging and Shipping:
Certificate:
Why Choose Us?
Cooperative partner:
FAQ
Q1: Are you a factory or company?
A: Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q3: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Do you have MOQ for your batteries?
A: MOQ of OEM orders is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs.
Q5: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
Q6: What about the lead time?
A: Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days.
Q7: What about the quality of your battery?
A: We only produce safe, reliable and longetive battery, all products have passed the CE, RoHS certifications etc.
Q8: How to solve the technical problem?
A: 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us.
