Product Details:
|
| Features: | High Rate Capability | Warranty: | 12month |
|---|---|---|---|
| Chargeable: | Yes | Cycle Life: | 2000times |
| Storage Type: | Normal Temperature | Voltage: | 3.2V |
| OEM/ODM: | Accepatable | ||
| High Light: | 26650 3.2V Lifepo4 Battery,Electric Bicycles 3.2V Lifepo4 Battery,3.2V Lifepo4 Battery Cell 26650 |
||

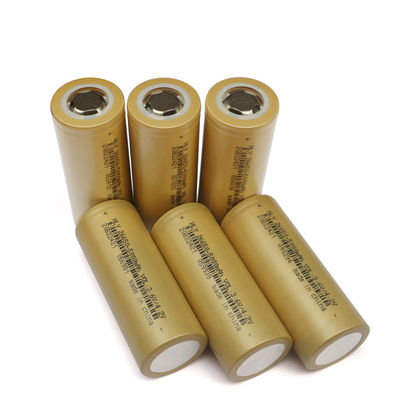

Factory Supply 3.2v Lifepo4 Battery 26650 4000mah Lifepo4 Battery For Electric Bicycles
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
Specification
| ITEM | SPECIFICATION |
| Nominal capacity | 4000 mAh@0.5C |
| Minimum capactiy |
3960 mAh@0.5C (Discharge the cell from 3.6V to 2.0V by 0.5C current) |
| Nominal voltage | 3.2V |
| Charging voltage | 3.65 ± 0.05 V |
| Discharg ending voltage | 2.00 ± 0.05 V |
| Standard charge current | 0.5C (2000mA) |
| Standard discharge current | 1C (4000mA) |
| Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge:10~60℃ Discharge: 0~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension |
Height: 65.5 mm Diameter: 26.5 mm |
| Weight | 88 ± 2g |
Company Profile
Established in 2013, Jiangxi Hualiyuan Lithium Energy Co., Ltd. is a high-tech enterprise integrating Research&Development, production, sales and sharing services of high-performance lithium-ion battery 18650/26650 products.The headquarter and R & D base are set up in the beautiful Ji'an Industrial Park, with offices all over the country. The company has strong technical and R & D strength, and has been awarded the honorary certificate of "high-tech enterprise" by the government.
Application
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| Battery-operated motor cycle; Electric motorcycle; E-scooter |
Grid peak regulation power supply | Communication building 336V HVDC data center backup power | Electric model, airplane model | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Renewable energy (lithium iron battery + photovoltaic +...) Base station power supply | Electric robot; Electromotive robot | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric special vehicle: Electric golf car, electric sightseeing car, electric engineering car, electric sweeper, electric forklift, police patrol car, electric balance car | Photovoltaic off-grid and grid-connected energy storage power station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
FAQ
Q1: Are you a factory or company?
A: We are a factory and trading company with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q3: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q4: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have MOQ for your batteries?
A: MOQ of OEM orders is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs.
Q6: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
