Product Details:
|
| Battery Size: | 18.4*65.1mm | Weight: | 48g |
|---|---|---|---|
| Nominal Voltage: | 3.6V | Cycle Life: | 500 Times |
| Product Certifications: | BIS | Warranty: | 1 Year |
| Customization: | Logo/Packaging/Graphic | Main Markets: | South Asia 14.75%, Mid East 9.84%, North America 8.85% |
| High Light: | EC 18650 Rechargeable Cells,3.6V 18650 Rechargeable Cells,3.6V 2600mAh Lithium Ion Battery |
||

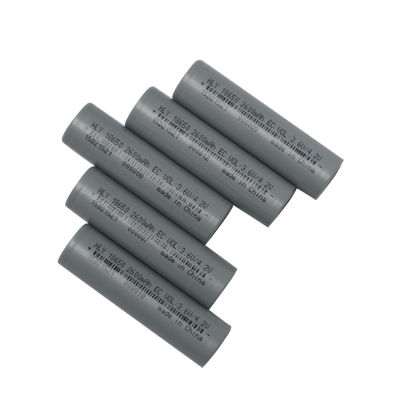

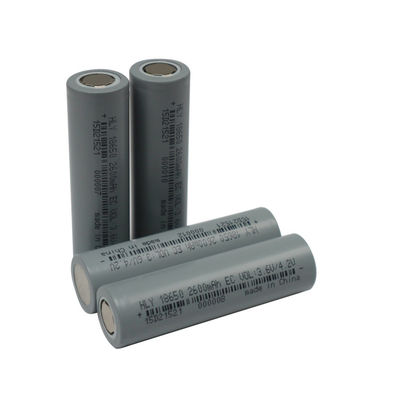

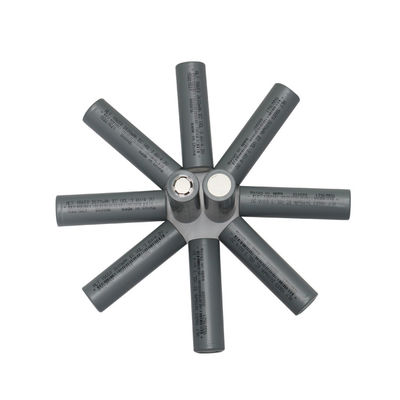

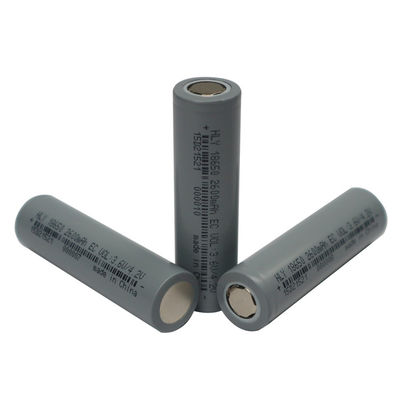

High Rate Lithium Ion Cell 18650 3.6V 2600mAh EC Rechargeable Solar Battery For Electrical Tools
PRODUCT DESCRIPTION
Battery Features:
1. Light, small, low current, large capacity, high rate capability, high energy density and long cycle life.
2. High safety, over charge and over discharge protection, meeting international safety standards, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc.
3. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature.
4. A variety of battery cell types for choice, like 18650 2000mAh, 2200mAh, 2500mAh, 2600mAh, suitable for many different product fields, like electric vehicles, electric home appliances, solar energy storage systems and so on.
5. Independent research, design and development, can be customized as per customers' product requirements, like printing logo, customized packaging and graphic.
Applications:
1. Storage: solar and wind energy save systems, solar streetlights.
2. Power Supply: Power supply source for communication base station and communication industry and emergency power.
3. EV: pure&hybrid electric vehichles, like recreational, chill cars, wheelchair, motorbike, bicycle, balance bikes, scooter, skateboard, grass trimmer or lawn mowers.
4. Home electronics: electric tool, mobile audio, shaver, POS machine, bright electric torch, mobile power supplies, electronic nebulizer, unmanned aerial vehicle, etc.
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2600 mAh@0.5C |
| Minimum capactiy |
2600 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1300mA) |
| Standard discharge current | 1C (2600mA) |
| Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
Payment terms&Shipping:
| Frequently asked questions | ||
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping. |
| 4 | What about the quality of your battery? | We only produce safe, reliable and longetive battery, all products have passed the CE, RoHS certifications. |
| 5 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
