Product Details:
|
Battery Type: | 18650 Rechargeable Li-ion | Battery Size: | 18.4*65.1mm |
---|---|---|---|
Weight: | 48g | Nominal Voltage: | 3.6V |
Cycle Life: | 500 Times | OEM/ODM: | Accepatable |
Warranty: | 1 Year | Main Markets: | South Asia 14.75%, Mid East 9.84%, North America 8.85% |
High Light: | BIS 3.6 Volt Rechargeable Battery,3.6 Volt Rechargeable Battery 2600mAh,3.6Volt High Rate 18650 Cell Battery |

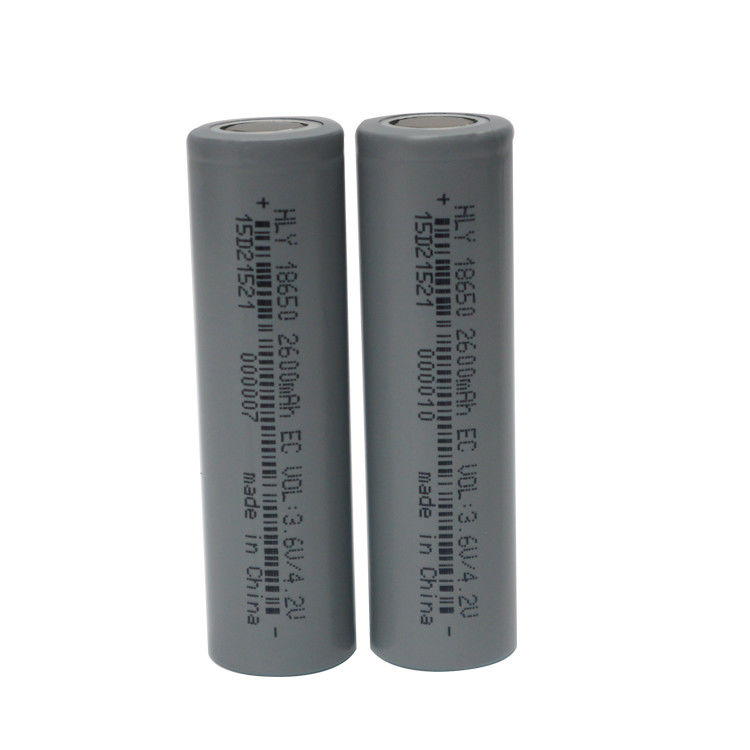

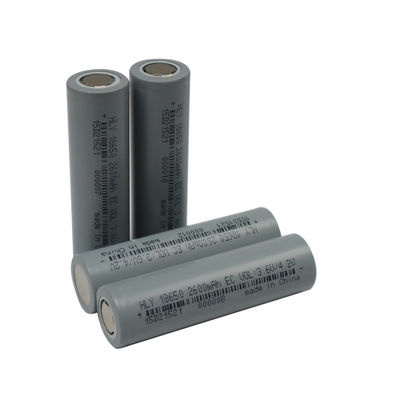

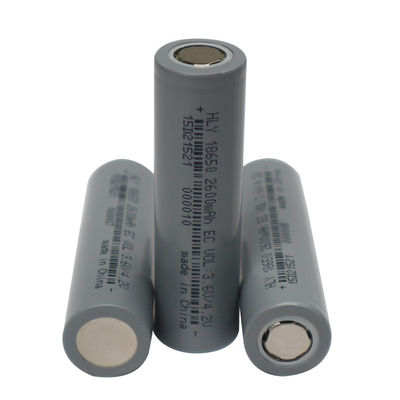

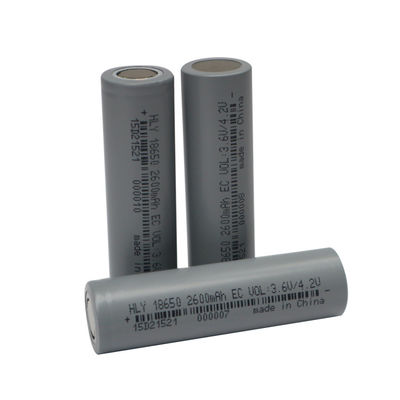

Manufacturer BIS Certification 3.6V 18650 2600mAh High Rate Lithium Ion Battery Cell
PRODUCT DESCRIPTION
Battery Features:
1. Light, small, large capacity, high energy density and long cycle life.
2. High safety, over charge and over discharge protection, meeting international safety standards, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc.
3. Wide operating temperature range, stable performance under high and low temperature.
4. A variety of battery cell types for choice, suitable for many different product fields.
5. Independent research, design and development, can be customized as per customers' product requirements.
Application field of lithium battery | ||||
Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
Electric bus/Medium bus (Hybrid and pure) |
Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification
ITEM | SPECIFICATION |
Nominal capacity | 2600 mAh@0.5C |
Minimum capactiy |
2600 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
Nominal voltage | 3.6V |
Charging voltage | 4.2 ± 0.05 V |
Discharg ending voltage | 2.75 ± 0.05 V |
Standard charge current | 0.5C (1300mA) |
Standard discharge current | 1C (2600mA) |
Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
Weight | ≤ 48g |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
Why choose us?
1. We founded in 2013, have about 10 years experience in the field of Lithium Ion Battery.
2. We have 400 professsional workers and 20 R&D engineers.
3. We have an industrial park of 23,000 square meters and more than 100 patented technologies and more than 200 sets of high-precision instruments.
4. We got 8 China excellent patent awards.
5. We cooperate with Chinese Academy of Sciences(CAS) to research and develop new product Sodium Ion(Na+).
Common questions:
Frequently asked questions | ||
No. | Questions | Answers |
1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
3 | What is your production capacity? | Our production capacity can reach to 200,000 pcs per day. |
4 | How do you ship the goods and how long does it take to arrive? | DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional. |
5 | What about the quality of your battery? | We only produce safe, reliable and longetive battery, all products have passed the CE, RoHS certifications. |
