Product Details:
|
| Battery Type: | 18650 Rechargeable Li-ion | Battery Size: | 18.4*65.1mm |
|---|---|---|---|
| Weight: | 48g | Nominal Voltage: | 3.6V |
| OEM/ODM: | Accepatable | Cycle Life: | 500 Times |
| High Light: | 2200mah Cylindrical Battery Cells,EN62133 Cylindrical Battery Cells,EN62133 2200mah li ion battery |
||

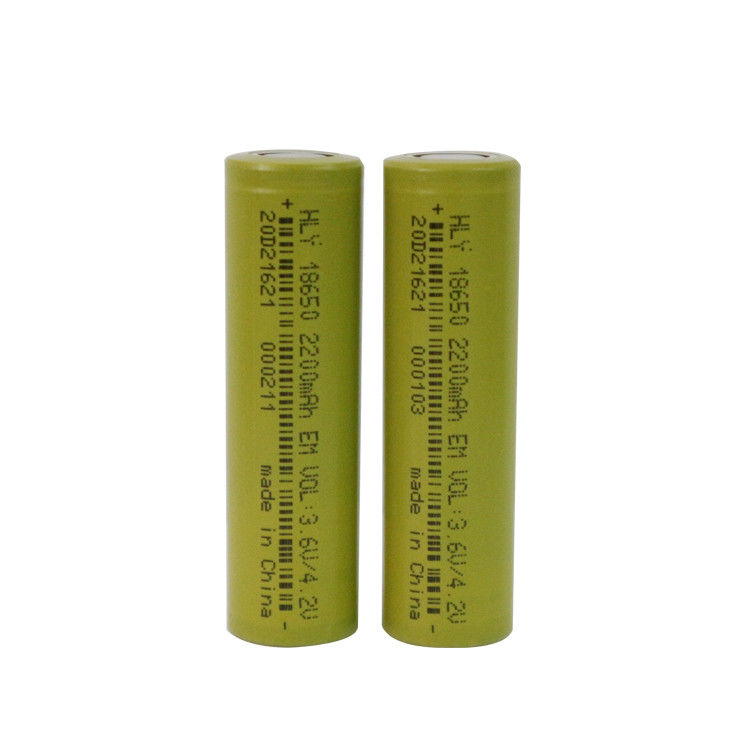

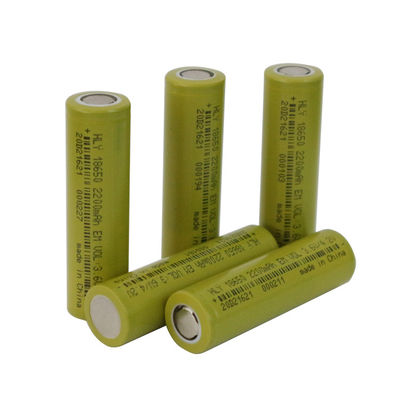

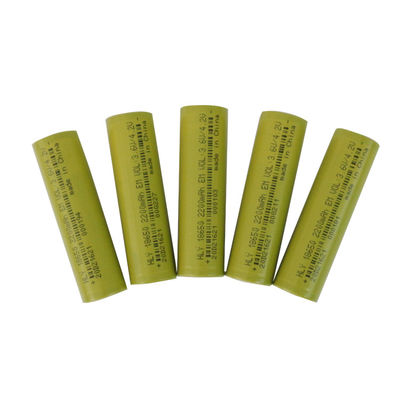

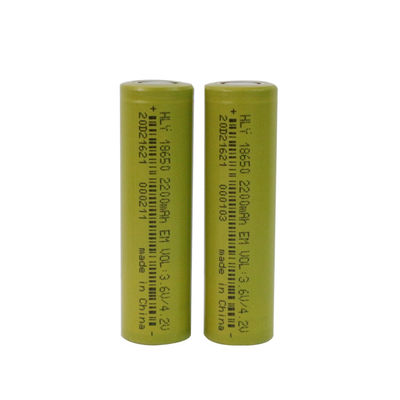

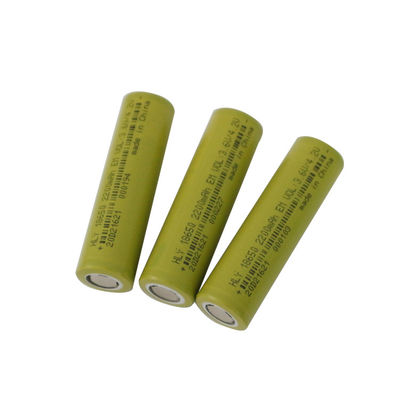

Charge Current 3.6V 2200mah 18650 Cylindrical Lithium Ion Battery Cells For Balance Bikes
PRODUCT DESCRIPTION
Battery Features:
I. Light, small, high energy density and long cycle life.
II. High safety, meeting international safety standards such as UL, CE, EN62133, etc.
III. Wide operating temperature range, stable performance under high and low temperature.
IV. A variety of cell types for choice, suitable for many different product fields.
V. Independent development and design, can be customized as per customers' producy requirements.
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| Battery-operated motor cycle; Electric motorcycle; E-scooter |
Grid peak regulation power supply | Communication building 336V HVDC data center backup power | Electric model, airplane model | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Renewable energy (lithium iron battery + photovoltaic +...) Base station power supply | Electric robot; Electromotive robot | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric special vehicle: Electric golf car, electric sightseeing car, electric engineering car, electric sweeper, electric forklift, police patrol car, electric balance car | Photovoltaic off-grid and grid-connected energy storage power station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2200 mAh@0.5C |
| Minimum capactiy |
2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1100mA) |
| Standard discharge current | 1C (2200mA) |
| Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
Company profile:
JiangXi Hualiyuan lithium Energy Co.,Ltd,was established in 2013.The company has an industrial park of 23,000 square meters and more than 100 patented technologies, including 8 invention patents, more than 100 technical research and development personnel and more than 200 sets of high-precision instruments. After 10 years more of rapid development,HYL has become a global competitive high-quality lithium battery platform company, possessing core technologies and comprehensive solutions for consumer batteries and power batteries. Products are widely used in the field of loT and Energy Internet.
FAQ:
Q1: Are you a factory or company?
A: Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q3: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q4: Can I print my own logo on the product?
A: Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
