Product Details:
|
| Features: | High-rate Charge-discharge Capability | Battery Size: | 26.5*65.5mm |
|---|---|---|---|
| Weight: | 96±2g | Nominal Voltage: | 3.6V |
| Cycle Life: | 1500 Times | OEM/ODM: | Accepatable |
| Product Certifications: | BIS | Protection: | Trade Assurance, On-time Dispatch Guarantee, Refund Policy |
| High Light: | 26650 Rechargeable Battery 5000mah 3.6V,3C 26650 Rechargeable Battery 5000mah,3C High Density Lithium Ion Battery |
||

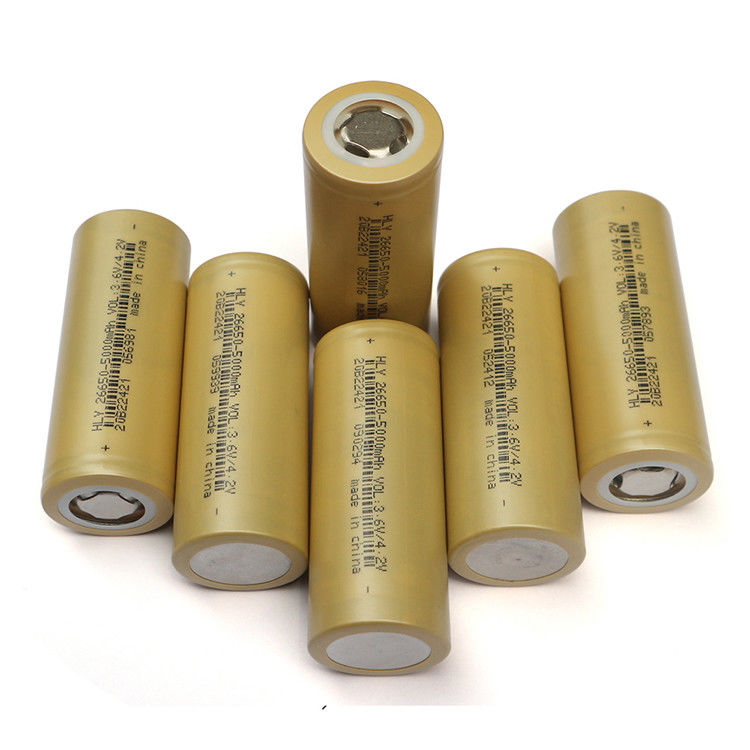

Manufacturer CE Certificate 5000mAh 3.6V 3C Power High Capacity Lithium-Ion Battery Cell For Electric Power Systems
PRODUCT DESCRIPTION
Battery Features:
1. Light, small, low current, large capacity, high rate capability, high energy density and long cycle life.
2. High safety, over charge and over discharge protection, we have got many prodcuts certificates, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc, to meet the international standards.
3. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature.
4. A variety of battery battery types for choice, like 26650 Li-ion battery 4000mAh, 5000mAh, suitable for many different product fields, meet your different demands.
5. Independent R&D, can be customized as per customers' product requirements, like printing logo, customized packaging and graphic.
Applications:
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric bus/Medium bus (Hybrid and pure) |
Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 5000 mAh@0.5C |
| Minimum capactiy |
4950 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (2500mA) |
| Standard discharge current | 1C (5000mA) |
| Max charge current |
1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge:0~60℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension |
Height: 65.5mm Diameter: 26.5mm |
| Weight | 96 ± 2g |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
Payment&Packaging&Shipping:
Partner relationship:
| Frequently asked questions | ||
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | Can I print my own logo on the product? | Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample. |
| 4 | What is your production capacity? | Our production capacity can reach to 200,000 pcs per day. |
| 5 | How do you ship the goods and how long does it take to arrive? | DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional. |
| 6 | What about the quality of your battery? | We only produce safe, reliable and longetive battery, all products have passed the CE, RoHS certifications. |
| 7 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
