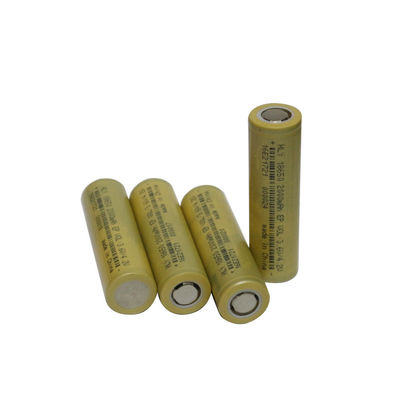

Product Details:
|
| Battery Type: | 18650 Rechargeable Li-ion | Nominal Voltage: | 3.6V |
|---|---|---|---|
| OEM/ODM: | Accepatable | Battery Size: | 18.4*65.1mm |
| Weight: | 48g | Cycle Life: | 500 Times |
| Certificate: | CE | Material: | Cylindrical |
| High Light: | 3.6V 2200mah 18650 Rechargeable Lithium Battery,Vacuum Cleaner 18650 Rechargeable Lithium Battery,3.6V 18650 high capacity lithium battery |
||
Paramenters:
| ITEM | SPECIFICATION |
| Nominal capacity | 2200 mAh@0.5C |
| Minimum capactiy | 2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1100mA) |
| Standard discharge current | 1C (2200mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
1. Telecommunication: cellular phone, web phone, interphone, earphone.
2. Portable office devices: Notebook, portable printer.
3. Video devices: GPS, digital camera, camcorder,, portable television,
4. Storage: solar and wind complementary stored energy, solar streetlights, energy storage systems, household energy storage
5. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power.
F&Q:
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, neutral order mass production time needs 3-7 working days. If OEM orders, would be about 30 days.
Q3. Do you have MOQ for Your Batteries?
A: OEM orders MOQ is 20000pcs. We can also accept small quantity for neutral orders.
Q4. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on the product?
A: Yes. We welcome OEM and ODM orders.
